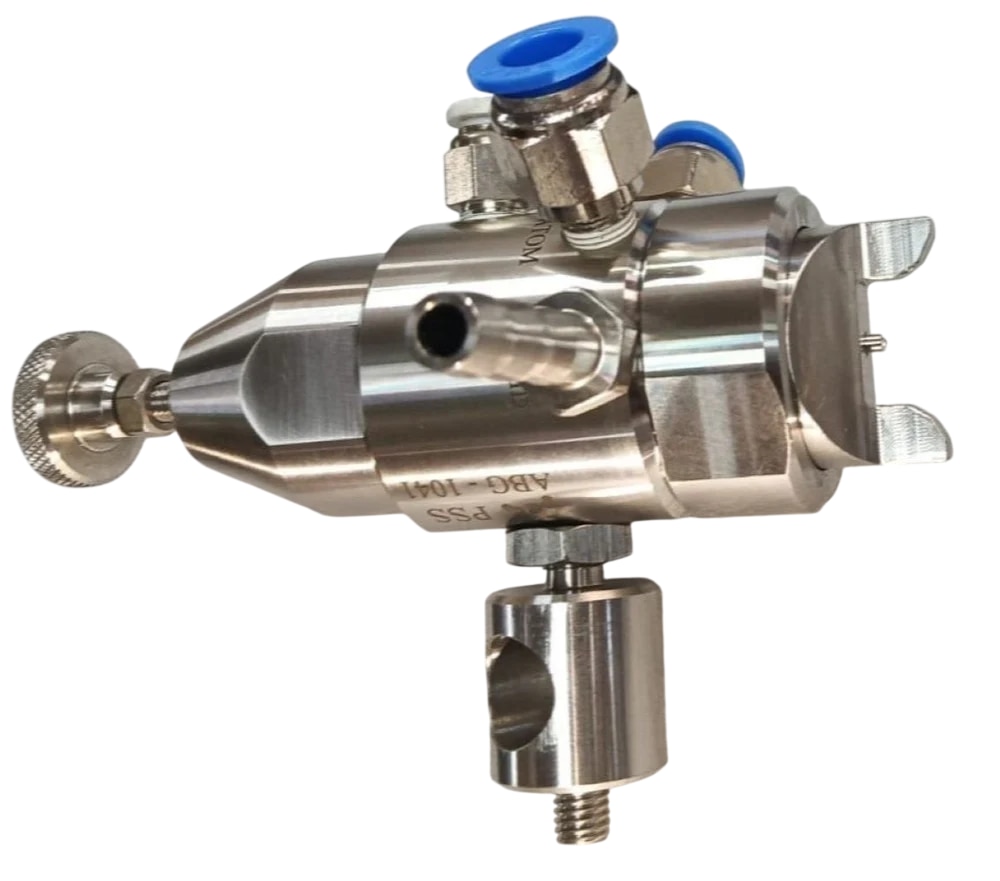

ABG 1041 Tablet Coating Four Port Spray Gun
The ABG 1041 is a pharmaceutical tablet coating spray gun designed for use in automatic coating machines. It utilizes four-port air atomization technology, allowing independent control of liquid flow, atomizing air, spray pattern air, and activation air for precise coating performance. Four-port spray guns provide better control over droplet size and spray width, resulting in more uniform tablet coating.
Key Features
✔ Four-port design for precise spray control
✔ Air atomizing technology for fine droplet formation
✔ Oval flat spray pattern for uniform coating distribution
✔ Compatible with most tablet coating machines
✔ Adjustable liquid flow and spray angle
✔ FDA-approved sealing materials available
✔ Suitable for film coating, enteric coating, and functional coating applications
Typical Specifications
- Model: ABG 1041
- Spray Pattern: Oval Flat
- Nozzle Orifice Size: 0.8 – 1.5 mm (commonly 1.0 mm & 1.2 mm)
- Flow Rate: 20 – 150 g/min
- Atomizing Air Pressure: 0.7 – 3 bar
- Spray Angle: 10° – 70°
- Maximum Air Pressure: 5 bar
- Compressed Air Consumption: 10 Nm³/hr @ 2 bar
Benefits in Tablet Coating
- Produces uniform coating thickness
- Reduces coating defects such as picking, roughness, and twinning
- Improves coating efficiency and surface finish
- Enables consistent atomization and spray coverage
- Suitable for high-performance pharmaceutical coating processes
Features & Benefits
- Uniform spray distribution
- Anti-Bearding (Non-Clogging) designed spray nozzle assembly
- Anti-Dripping
- Liquid flow adjustment
- Easy to clean – User Friendly
- Low Maintenance
- Compatible in all Coating Machines
- Unique Fan Pattern with angle adjustment option
ABG 1041 Tablet Coating Four-Port Spray Gun is designed to deliver precise atomization and uniform spray distribution for pharmaceutical tablet coating applications. Its anti-bearding, non-clogging nozzle assembly ensures uninterrupted operation, while the anti-dripping design minimizes product wastage and coating defects. The spray gun offers liquid flow adjustment and a unique fan spray pattern with angle adjustment, allowing operators to optimize coating performance for different batch sizes and formulations. Easy to clean, low maintenance, and compatible with most tablet coating machines, the ABG 1041 provides reliable and consistent coating results for enhanced product quality.
ABG 1041 Tablet Coating Four Port Spray Gun
Achieve superior tablet coating performance with the ABG 1041 Four-Port Spray Gun. Engineered for precise atomization and uniform spray distribution, it delivers consistent coating quality while minimizing defects. Ideal for pharmaceutical coating applications requiring accuracy, reliability, and efficiency.
