What is FBD (Fluid Bed Dryer) ?
FBD stands for Fluid Bed Dryer. It is a pharmaceutical and industrial processing equipment used primarily for drying wet powders, granules, and other particulate materials by passing a controlled stream of heated air through the product.
The upward flow of air causes the particles to become partially or fully suspended, creating a fluidized bed. This provides efficient contact between the hot air and the wet material, resulting in rapid and uniform moisture removal.

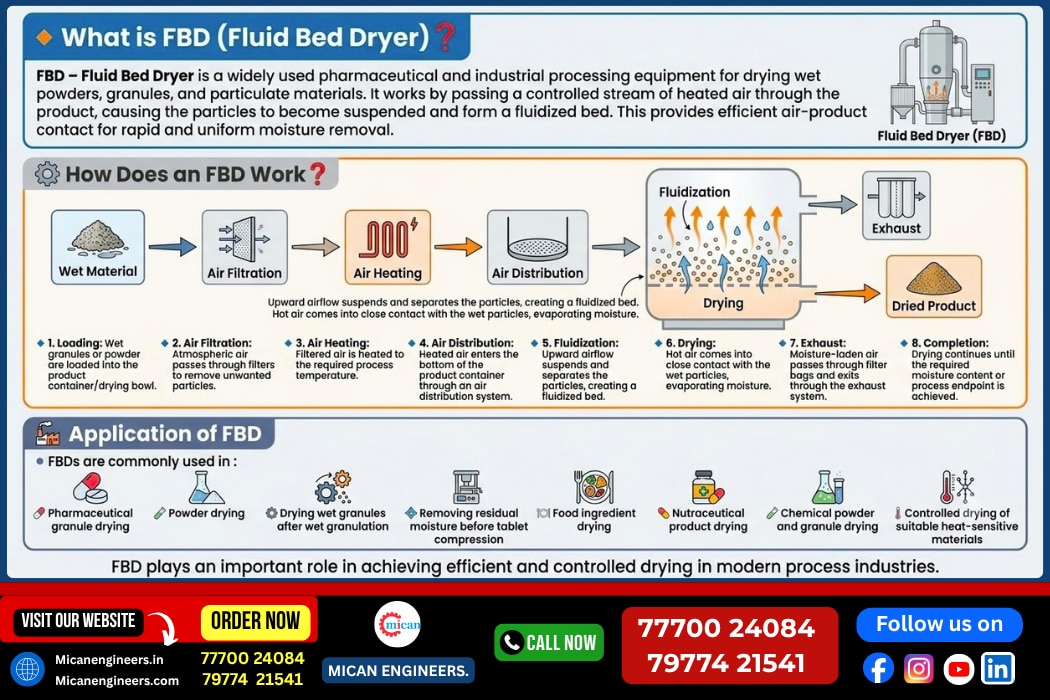

How Does an FBD Work ?
The basic working process is:
Wet Material → Air Filtration → Air Heating → Air Distribution → Fluidization → Moisture Removal → Dried Product
Loading: Wet granules or powder are loaded into the product container or drying bowl.
Air filtration: Atmospheric air passes through filters to remove unwanted particles.
Air heating: The filtered air is heated to the required process temperature.
Air distribution: Heated air enters the bottom of the product container through an air distribution system.
Fluidization: The upward airflow suspends and separates the particles, creating a fluidized bed.
Drying: Hot air comes into close contact with the wet particles and evaporates moisture.
Exhaust: Moisture-laden air passes through the filter bags and leaves through the exhaust system.
Completion: Drying continues until the required moisture content or drying endpoint is achieved.
Applications of FBD
FBDs are widely used in the pharmaceutical, food, chemical, nutraceutical and other process industries.
Common applications include:
- Drying pharmaceutical granules
- Drying powders
- Drying wet granules after wet granulation
- Removing residual moisture before tablet compression
- Drying food ingredients
- Drying nutraceutical products
- Drying certain chemical powders and granules
- Controlled drying of heat-sensitive materials with suitable process conditions
Main Components of FBD
| Component | Function |
|---|---|
| Product Container / Bowl | Holds the wet material during drying |
| Air Handling Unit (AHU) | Supplies and conditions process air |
| Air Filters | Remove dust and contaminants from incoming air |
| Heating System | Raises the temperature of process air |
| Air Distribution Plate | Distributes air uniformly through the product |
| Filter Bags | Prevent product particles from escaping with exhaust air |
| Filter Shaking/Pulse System | Removes accumulated product from filter bags |
| Exhaust System | Removes humid air from the drying chamber |
| Control Panel / PLC | Controls and monitors temperature, airflow, time and other parameters |
| Exhaust Duct | Carries moisture-laden air away from the equipment |
FBD in Pharmaceutical Manufacturing
In pharmaceutical manufacturing, an FBD is commonly used after the wet granulation process.
A simplified process can be:
Dispensing → Mixing → Wet Granulation → FBD Drying → Milling/Sizing → Blending → Compression
After wet granulation, the granules contain excess moisture. The FBD removes this moisture and helps achieve the required Loss on Drying (LOD) or moisture level before subsequent processing.
Advantages of FBD
- Fast drying due to large air-to-particle contact area
- Relatively uniform drying
- Good control of drying temperature and airflow
- Suitable for pharmaceutical granules and powders
- Can reduce manual drying operations
- Closed-system configurations can help improve product containment
- Automated operation and recipe-based control are possible
- Can be designed for cleaning and pharmaceutical GMP requirements
